Description
Loom Solar 5 kilowatt (4.7 kW), Mono-Crystalline off-grid solar rooftop system installation with 1 year AMC (Annual Maintenance Contract) is aimed at schools, colleges, House in the rural or semi-urban area. The system can easily generate 675-800 units of electricity every month.
| Capacity | 5 KiloWatt (4680 Watts) |

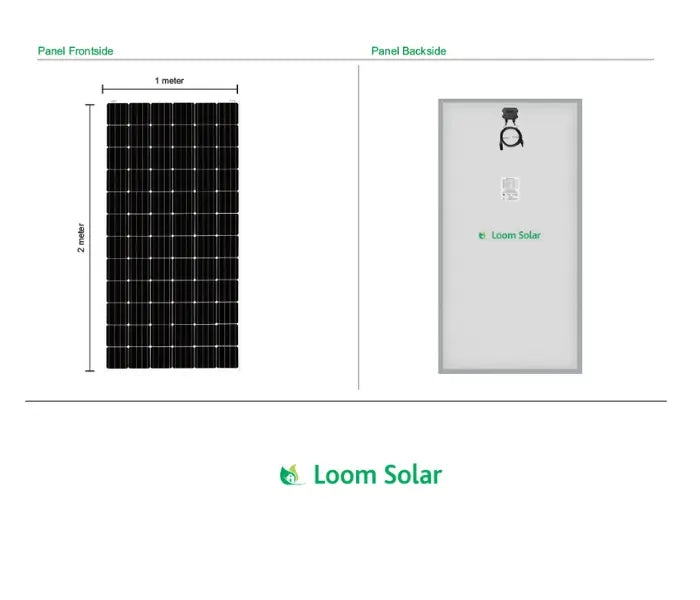

| Solar Panel | Loom Solar 390 Watts |
| Quantity | 12 Panels |
| Suitable for | 3 BHK House & Medium-Sized shops |
| Type | OFF-GRID System |
| Load | Air Conditioner 1.5 T, |
| Technology | Mono Crystalline Solar Panel |
| Inverter | PWM or MPPT (Select as per your need) |
| PWM Inverter | 5500 VA/ 48 Volts |
| MPPT Inverter | 5000 VA/48 Volts |
| Make | Waaree Energies |

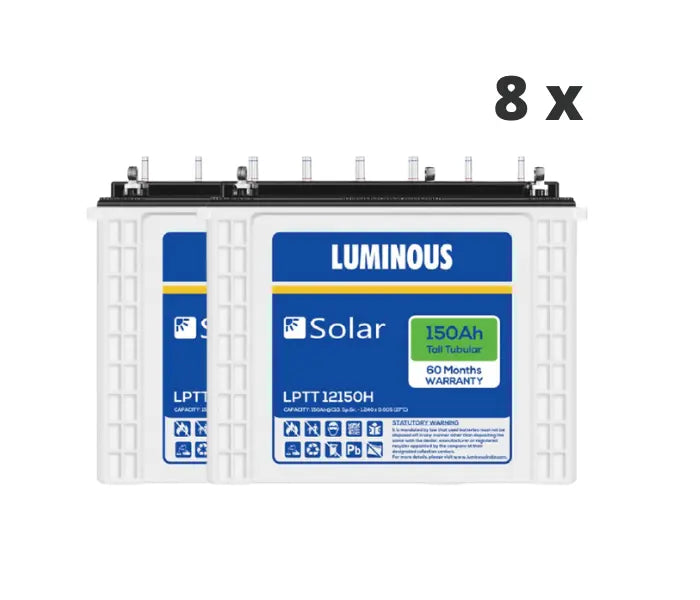

| Batteries | 12 V/150 ah, 4 Numbers or 8 Number (option to choose) |
| Type | Solar C-10 Type |
| Battery Warranty | 5 Years |
| Make | Luminous or Waree (anyone) |
| DC Wire | 50 Meters |
| DC MCB | 32/40 Amps |
| Earthing | 2 GI Earth Electrodes |
| Subsidy | Not eligible for subsidy |
| Warranty | Standard warranty as per manufacturer terms & conditions |
| Installation | Within 15 days from the date of payment |
| AMC | Free & standard AMC of 1 Year |
