Description
Panasonic 3.6 Kilowatt (3,600 Watts) Half-Cut, Mono-Crystalline, Off-Grid solar rooftop system for home, office with Waaree Energies 5.0 kVA MPPT Inverter and 150 Ah, LiFePo4 batteries. Panasonic 3.6 kilowatt solar rooftop system is sufficient for 3 BHK houses and medium-sized shops. The solar system is able to save around 400-500 units/month.
Key Features-
- Panasonic 450 Watt, Half-Cut, Mono-Crystalline Solar Panels (4 Nos)
- Waaree Energies 5 kVA/48 Volts MPPT Inverter (1 Nos)
- Autobot 150 Ah, 48 Volts, LiFePo4 battery ( 1 Nos)

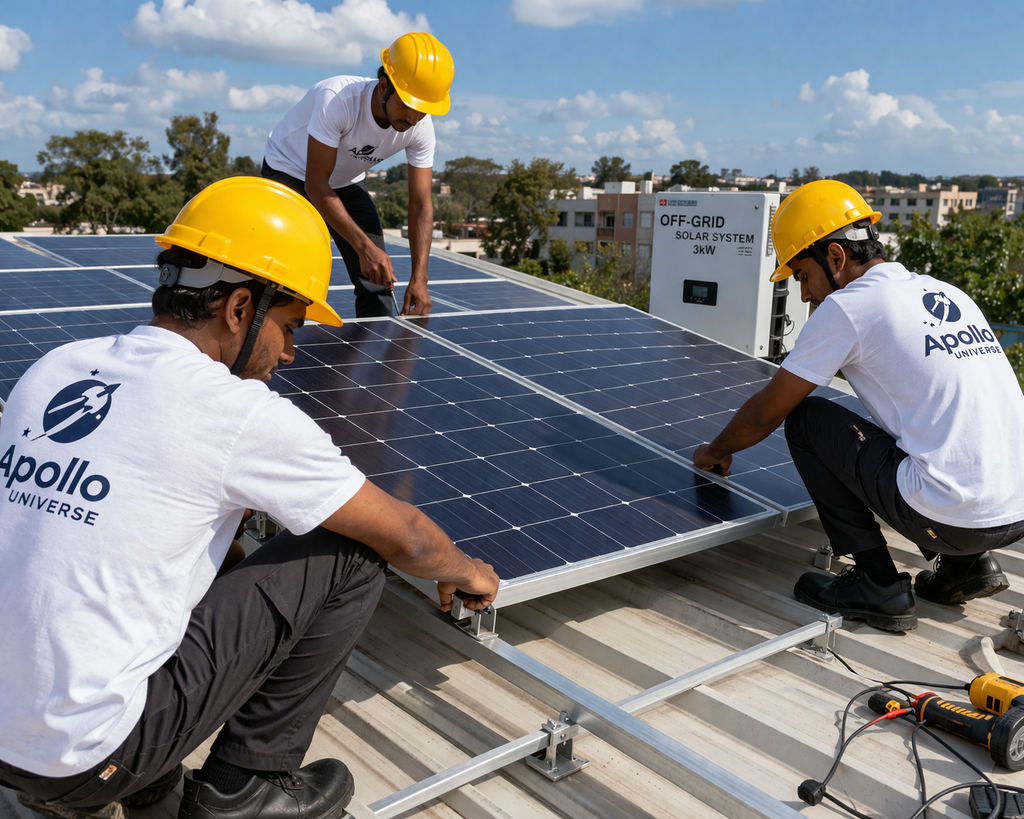

- Complete rooftop installation (Standard)
- Saving of 400-500 units/month and 30% extra back up as compared to regular C-10 & C-20 batteries.
Technical Specifications-
| Capacity | 3.6 Kilowatt / 3600 Watts |
| Type | OFF-GRID Solar Rooftop System |
| Panels |
Panasonic 450 Watt, Half-Cut, Mono-Crystalline Solar Panels |
| No of Panels | 8 Panels ( 450 x 8 = 3,600 Watts) |
| Panel Warranty | 25 years (Performance) & 12 years (Manufacturing defects) |
| Inverter |
Waaree Energies 5 kVA /48 Volts (WEM5000) |
| Inverter Technology | MPPT |
| Inverter Warranty | 2 Years |
| Battery |
Autobat 150 Ah/48 Volts LiFePo4 |
| Battery Technology | LiFePo4 (Lithium Ferro Phosphate) |
| Battery Warranty | 5 Years |
| DC Wire | 50 Meters |

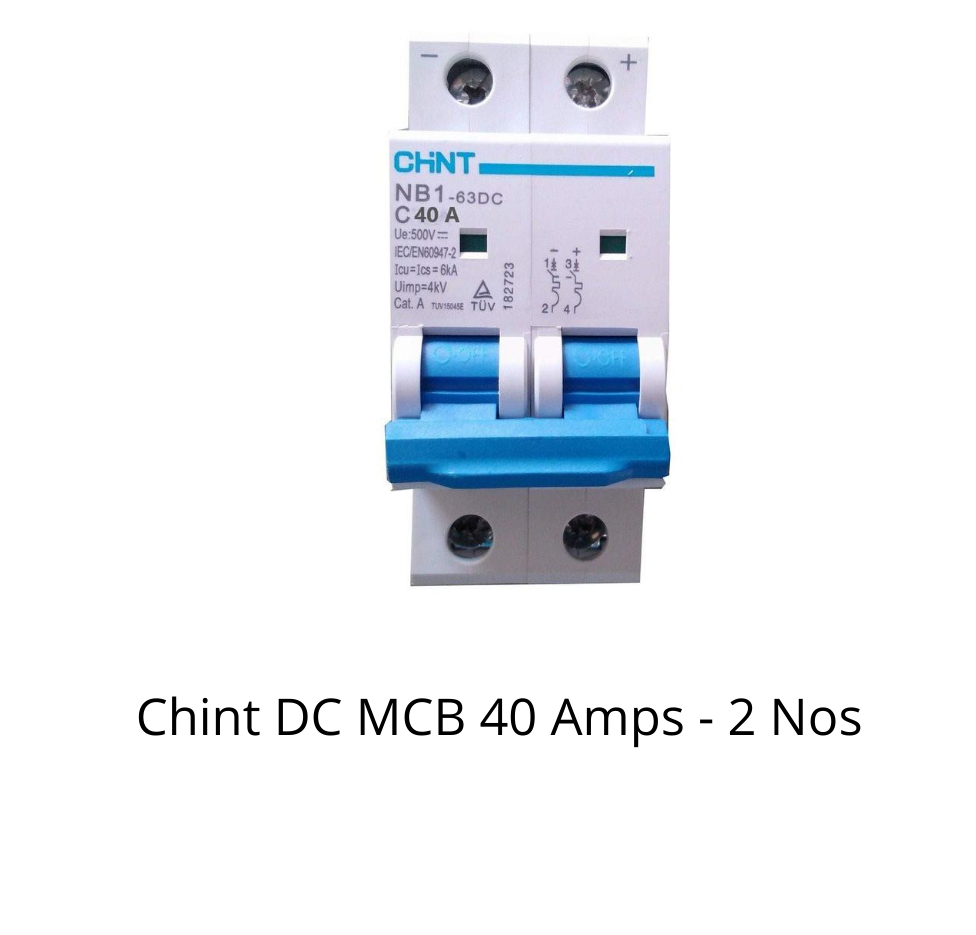

| DC MCB | 32/40 Amps |
| Earthing | 2 GI Earth Electrodes |
| Subsidy | Not eligible for subsidy |
| Warranty | Standard warranty as per manufacturer terms & conditions |
| Installation | Within 15 days from the date of payment |
