Description
Panasonic 450 Watt, 24 Volts Half-Cut, Mono-Crystalline, High-Efficiency Solar Panel is made by latest Half-Cut technology. The panel offers best in class performance & offers an efficiency of 20.7%. The panel offers excellent performance even under low light and cloudy atmosphere. Panasonic 450 Watt, Half-Cut Solar Panel, Pack of 2 is sufficient for 1BHK home and small to medium-sized shops. The panel offers a guaranteed output of 84.5% at the end of the 25th year.
Technical Specifications-
| Make | Panasonic Life Solutions Pvt. Ltd |
| Model | AE14H450VHC9B |
| Wattage | 450 Watts |
| No of cells | 144 Cells (6 x 24) |
| Pack of | 2 Panels (450 x 2 = 900 Watts) |
| Nominal Voltage | 24 Volts |
| Optimum operating voltage (Vmp) | 41.4 Volts |
| Open Circuit Voltage (Voc) | 49.2 Volts |
| Maximum Voltage | 41.41 Volts |
| Optimum Operating Current | 11.61 Amps |
| Efficiency | 20.7% |
| Output cable | 4 sq. mm |
| Quality | Half Cut Mono Crystalline Cell Technology |
| Warranty | 25 years of performance warranty and 12 years against manufacturing defects |
|

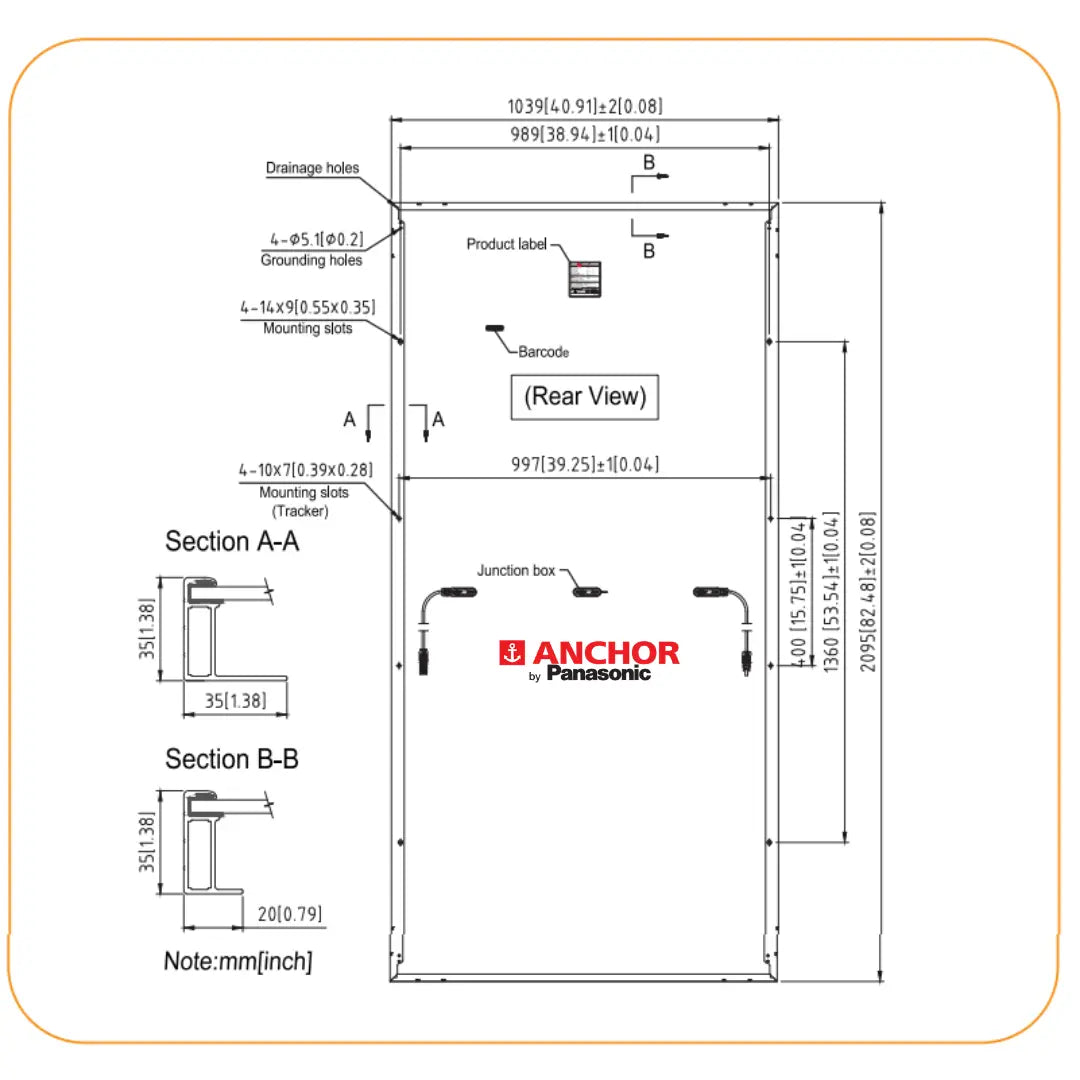

Dimensions (L x W x H) |
2095 x 1039 x 35 (in mm) |
| Weight | 24.5 kg |
| Company support | solar@in.panasonic.com |
| Datasheet | Click here to view the datasheet |
