Description

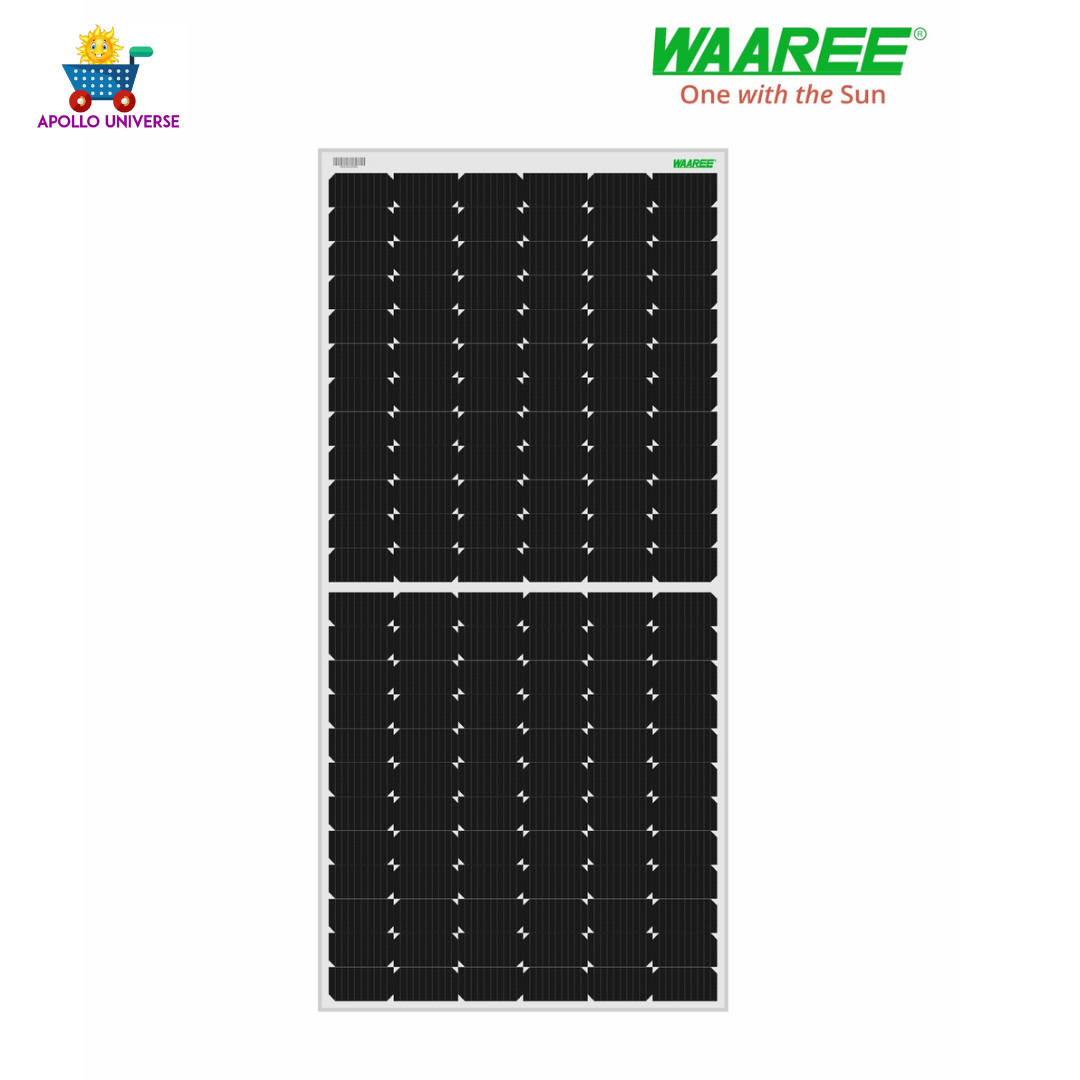

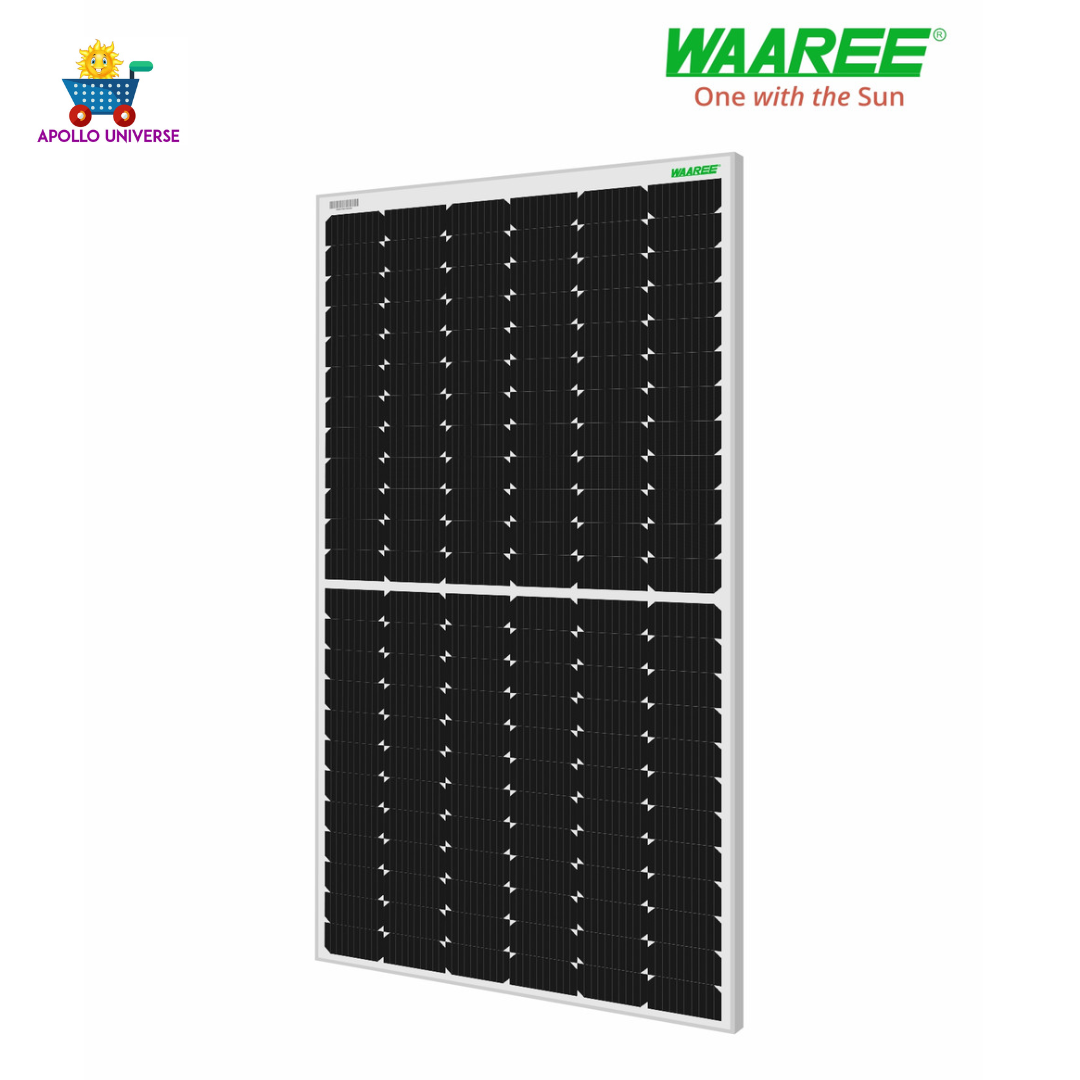

Waaree 450 Watts, 24 Volts, Bi-Facial, Half-Cut, Monocrystalline solar panel offers excellent electricity generation performance under adverse climatic conditions such as low light, cloudy atmosphere & shadow effect.
The panel has a glass surface at the back, generating electricity from the ground's reflected sun rays. Also, Half-Cut solar cells enable electricity generation of at least 50%; even shadow falls on the panel.
Hence, maximum generation as compared to regular solar panels. The panel offers best-in-class efficiency of 20.7% and hence gives maximum output.
Key Features -
-
Electricity generation - Approximately 135-160 units/month or 5-6 units/day.
- Warranty- 27 years of performance warranty
- Technology- Half-Cut, Monocrystalline
- Total Wattage- 900 Watts (450 Watts x 2 Nos)
- Efficiency- 20.7%
Technical Specifications-
| Model Name | AHNAY Series Bi-33-450 |
| Maximum Power (STC) |
450 Watts |
| Maximum Power (NTC) | 336.8 Watts |
| Maximum Voltage (Volts) | 41.81 Volts |
| Maximum Current (Amps) | 10.77 Amps |
| Short Circuit Current (Amps) | 11.46 Amps |
| Open Circuit Voltage (Volts) | 50.10 Volts |
| Module Efficiency | 20.70% |
| Potential Induced Degradation (PID) | PID Free |
| Solar Cells per Module (Units) / Arrangement | 144 cells / (12x6 || 12x6) |
| Length x Width x Thickness (L x W x T) | 2094 mm (L) x 1038 mm (W) x 35 mm (T) |
| Weight | 23.5 kgs |
| Junction Box (Protection degree / Material ) | IP68 / Weatherproof PPO |
| Defect Warranty | 12 Years |
| Performance Warranty | 27 Years |
| Warranty Registration | www.waree.com |
