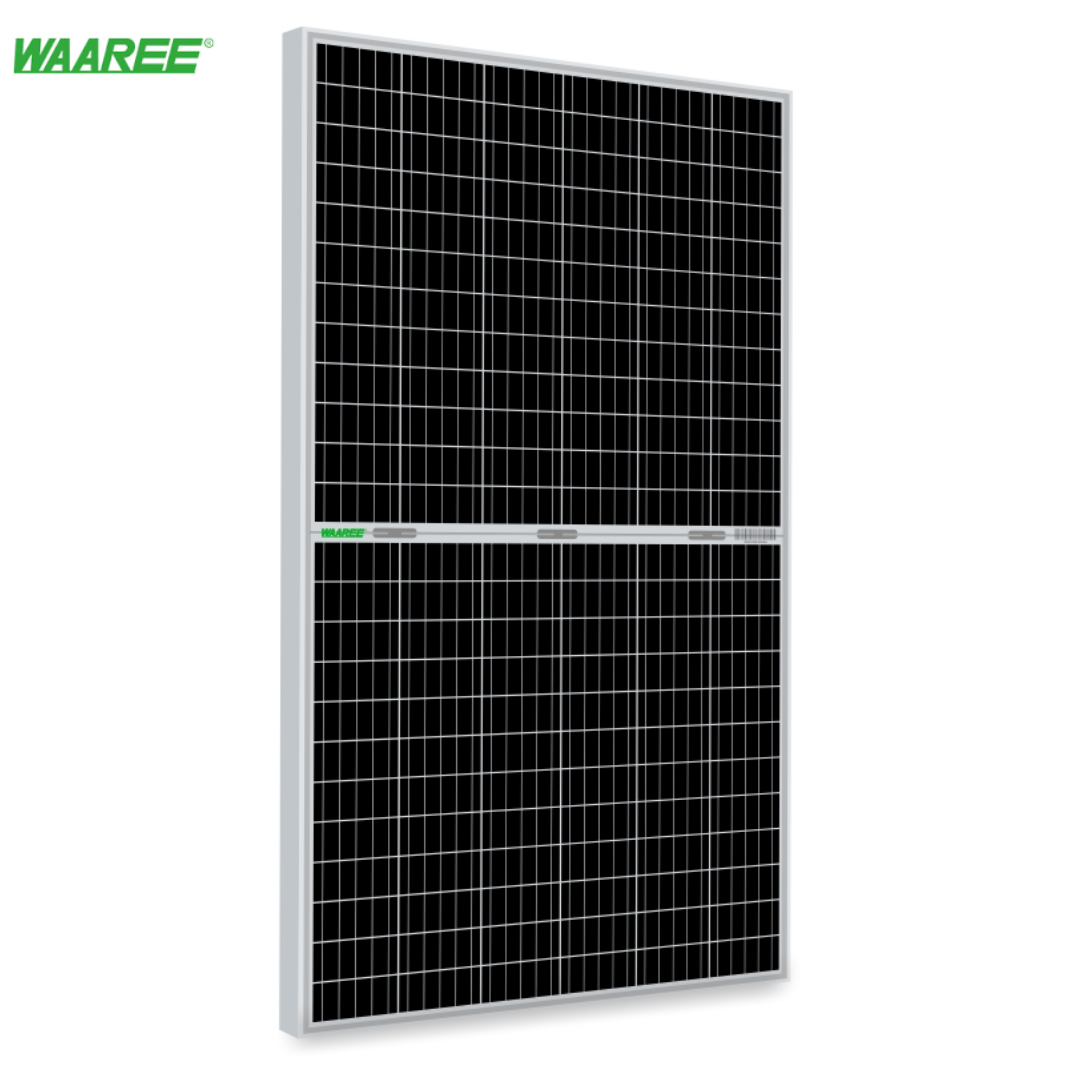

WAAREE 540 Watt, 24 Volts, ARKA series, Super efficiency dual glass framed Bi-Facial solar panel, Pack of 2

Save 53%

Price:
Sale priceRs. 30,500.00 Regular priceRs. 65,000.00

Description

Waaree energies ARKA series 540 Watt, 24 Volts ultra-efficient dual glass Bi-Facial solar panel is the highest capacity solar panel in India. The solar panel deliveries will be started from the first week of January-22. ARKA series of Waaree energies start from 350 Watts & it includes 445 watts, 400 watts, 415 watts, and the latest entrant is 540 watts solar panel the biggest one from Waaree in India.

Key Features- (1) Made with the latest Bi-Facial technology and thus offers the best in segment efficiency of close to 21%. (2) Single panel can generate 2.5-3 units/day (3) Performance warranty of 27 Years. (4) It offers excellent low-light performance under cloudy weather. (5) Split Junction Box To Improve Heat Dissipation. (6) Highest Reliability & Enhanced Crack Tolerant 12BB Module

Technical Specifications-

Panel Make Waaree Energies Pvt. Ltd
Panel Capacity 540 Watts
Panel Technology Bi-Facial with Half-Cut
Pack of  2 Panels (Total 1080 Watts)
Max. Voltage 41.9 Volts
Open Circuit Voltage 49.61 Volts
Max. Current 12.95 Amps
Isc (Short Circuit) 13.83 Amps
Bus Bar 12 Bus Bar Technology
Series ARKA SERIES
Warranty 27 Years
Warranty Type Performance Warranty
Dimension 2272 mm (L) x 1133 mm (W) x 35 mm (T)
Weight 27.5 kG
Solar cells  144 Cells (12 Bus Bar)`
Front Glass 3.2 mm Low Iron and Tempered glass with ARC coating
Encapsulate PID Free & UV Resistant
Junction box IP68 / Weatherproof PPO
Cable on Panel Cross Section- 4 sq.mm & Length- 500mm
Specification/ datasheet Click here to download datasheet
