Description

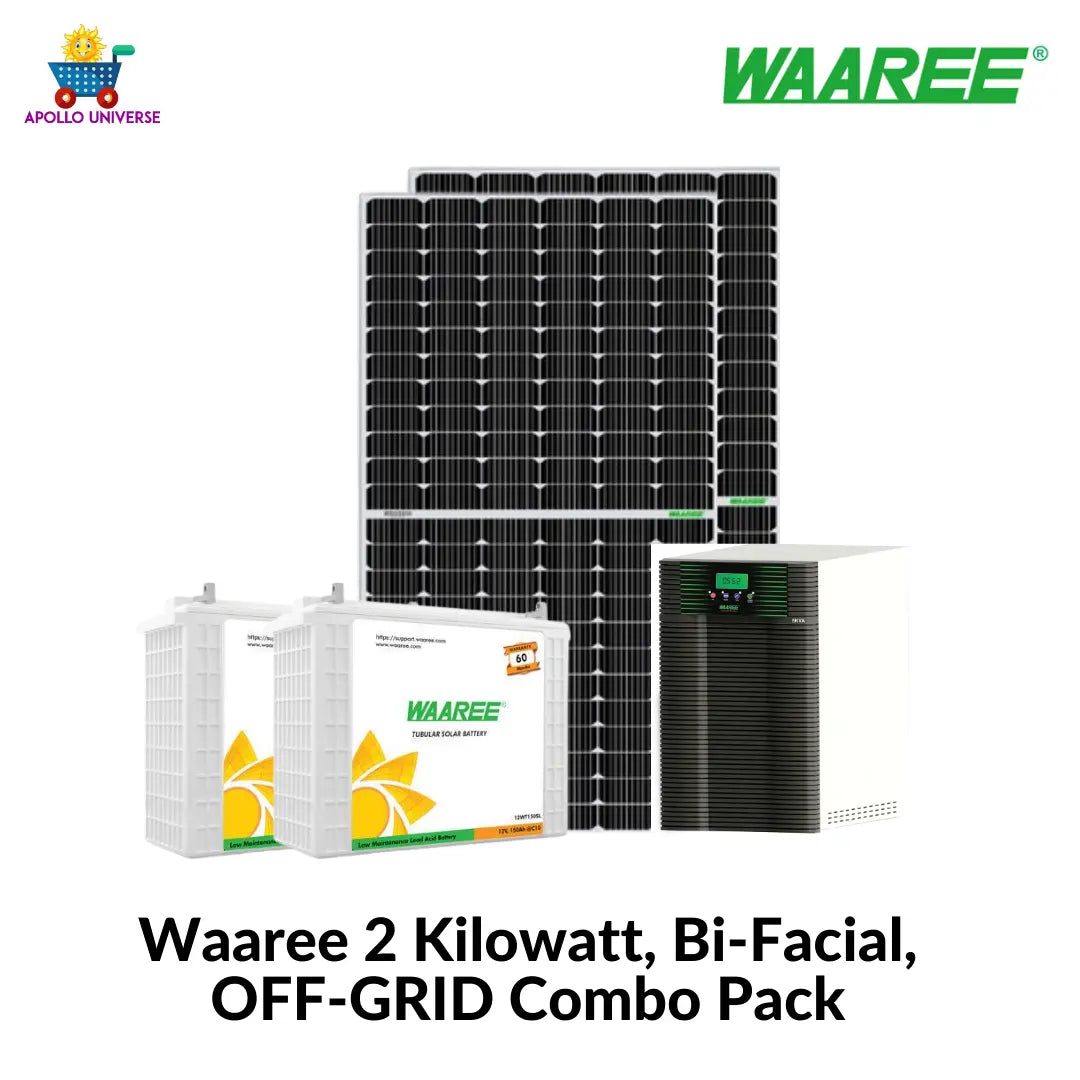

Waaree Energies Ltd. is the flagship company of Waaree Group, founded in 1989 with headquarters in Mumbai, India. Waaree 2 Kilowatts, OFF-Grid solar rooftop system is capable to generate approximately 240-300 units/month depending upon the solar irradiance. Waaree 2 kilowatts, Bi-Facial solar rooftop system is best suited for 2 BHK houses, medium-sized shops and offices. Waaree 2 Kilowatts solar rooftop system for home is able to handle air conditioner (max. 1.5 T) too and hence no worries during the summer season.

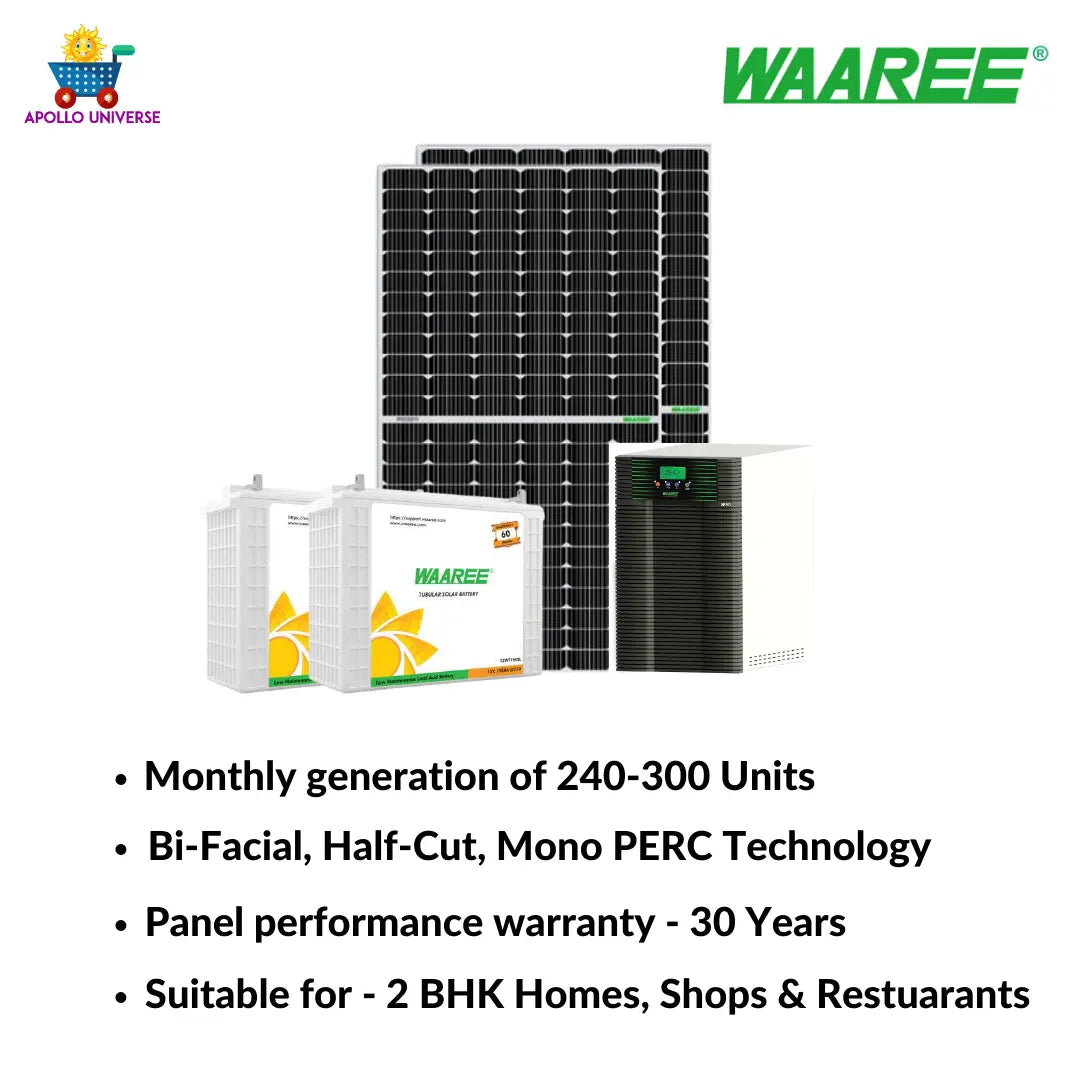

Key Features-

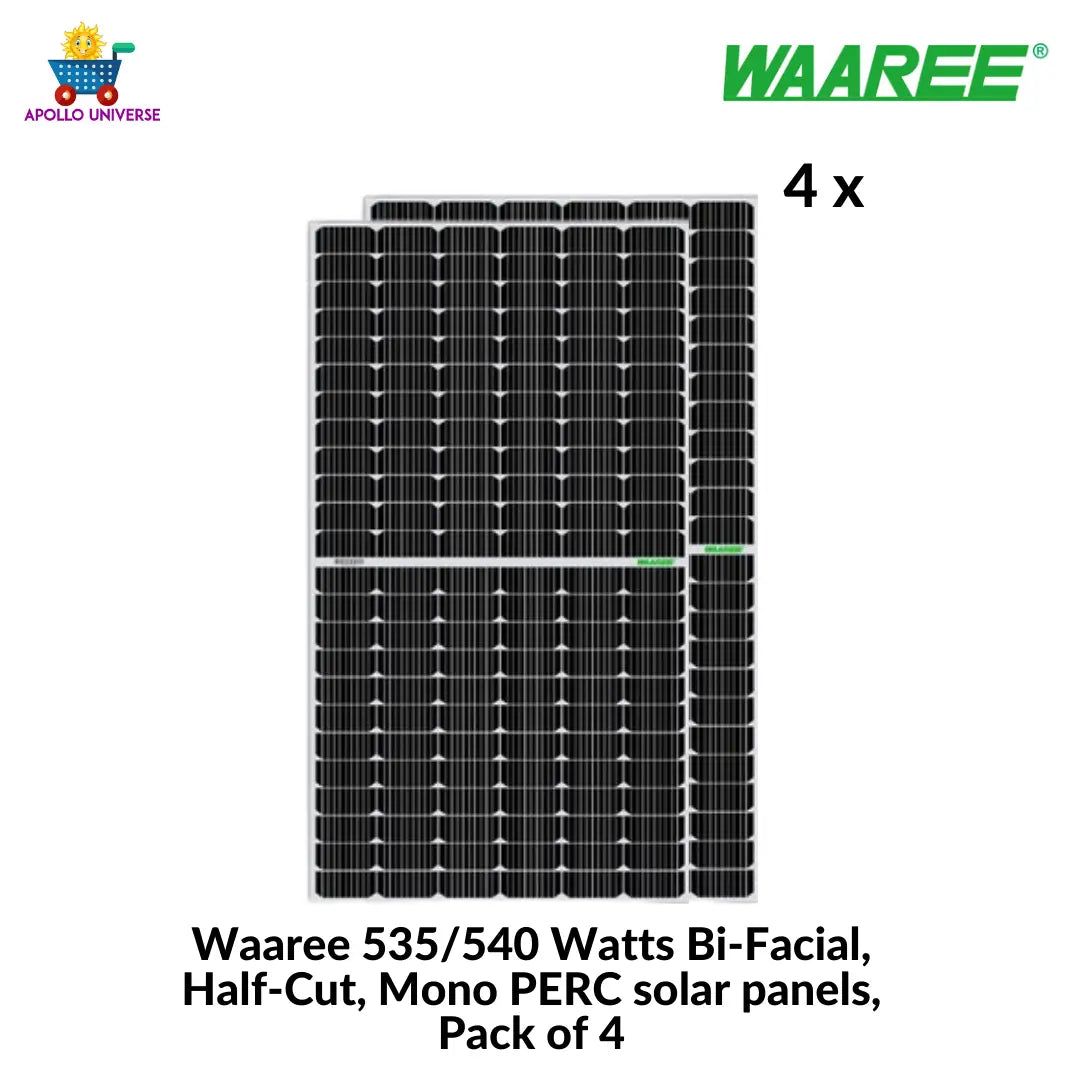

- Waaree 535/540 Watts, Bi-Facial, Half-Cut, Mono-Crystalline solar panels-4 Nos
- Product output warranty- 30 Years; Defect Warranty - 12 Years
- PID (Potential Induced Degradation) free solar panels & UV resistant

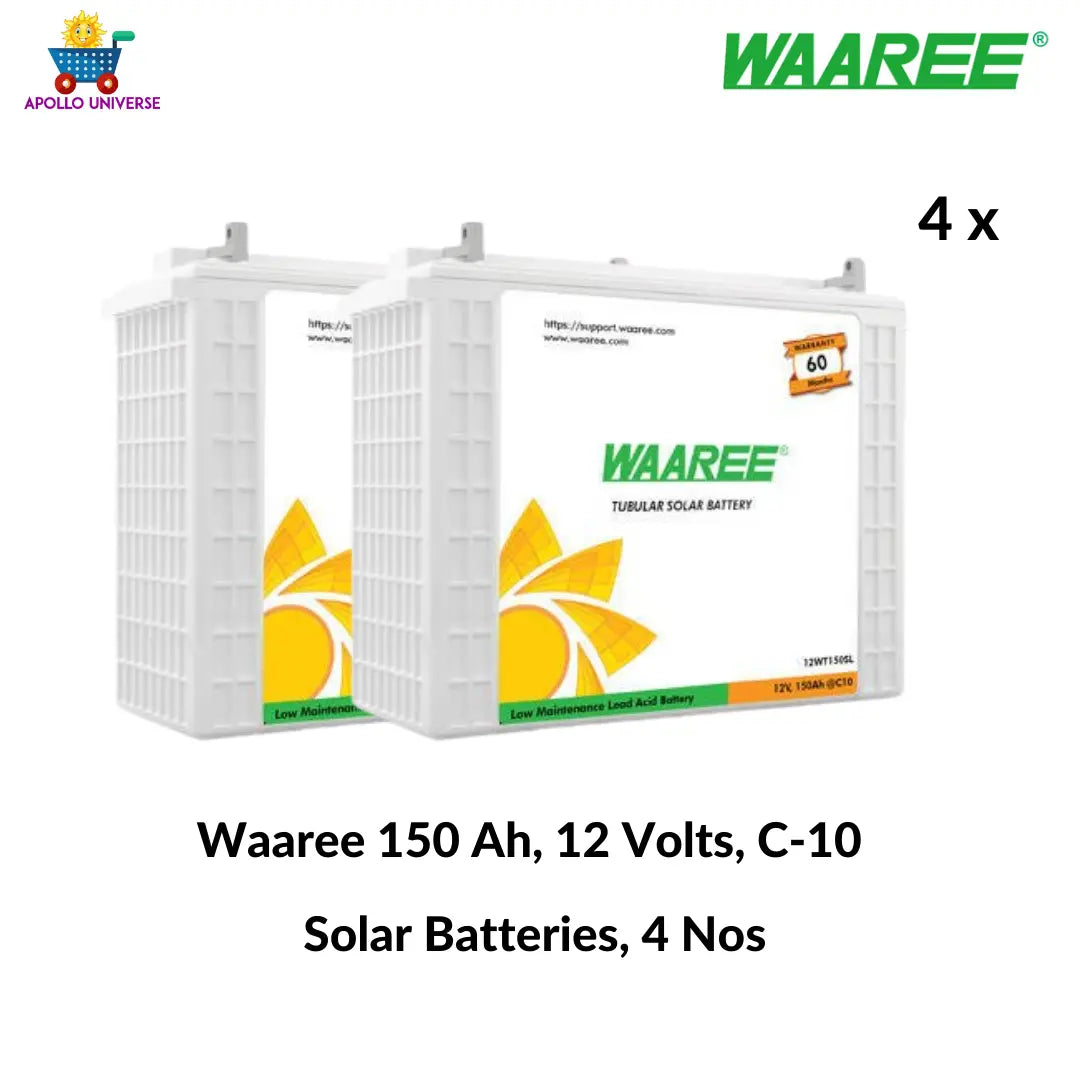

- Waaree 12 Volts, 150 Ah, Solar C-10 batteries - 4 Nos

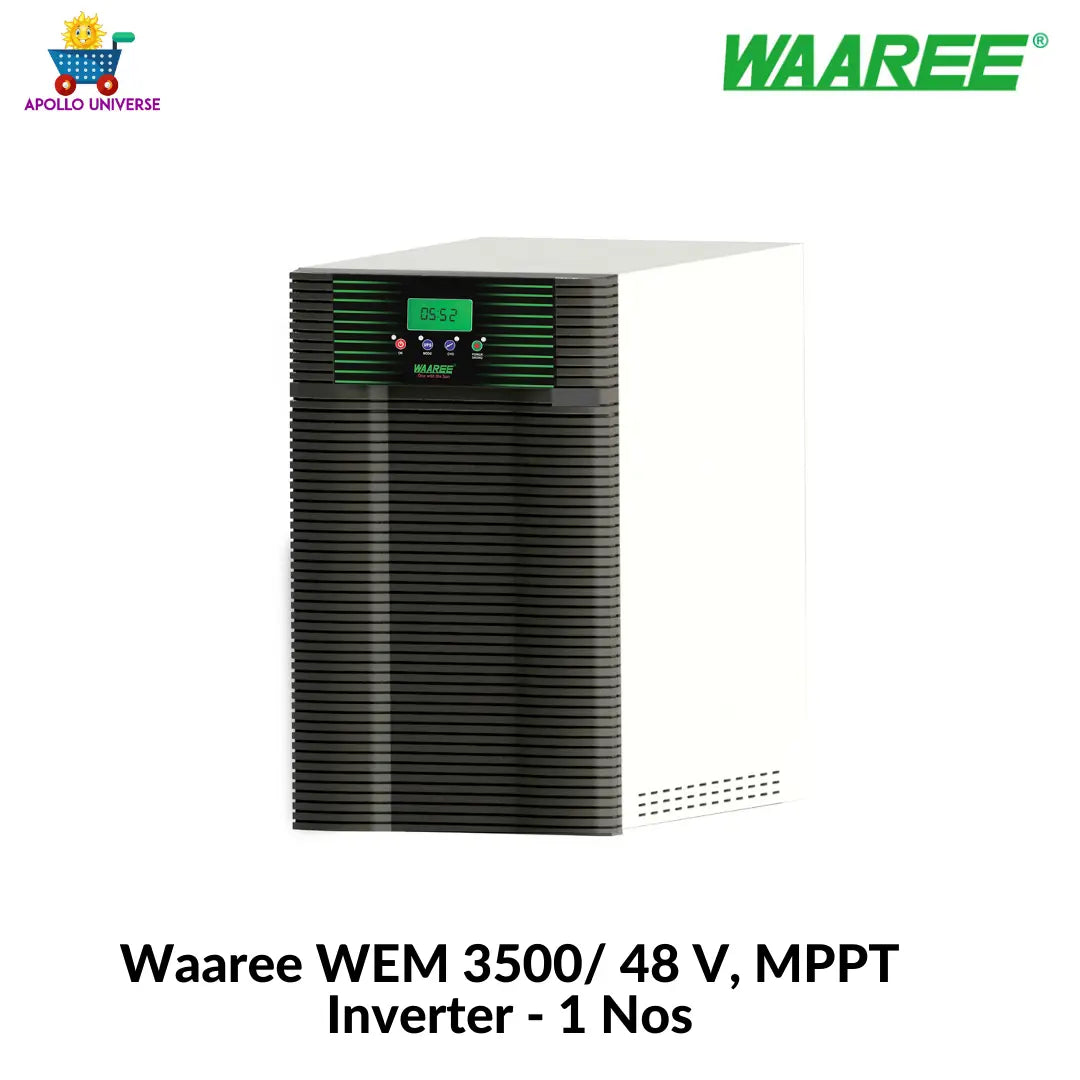

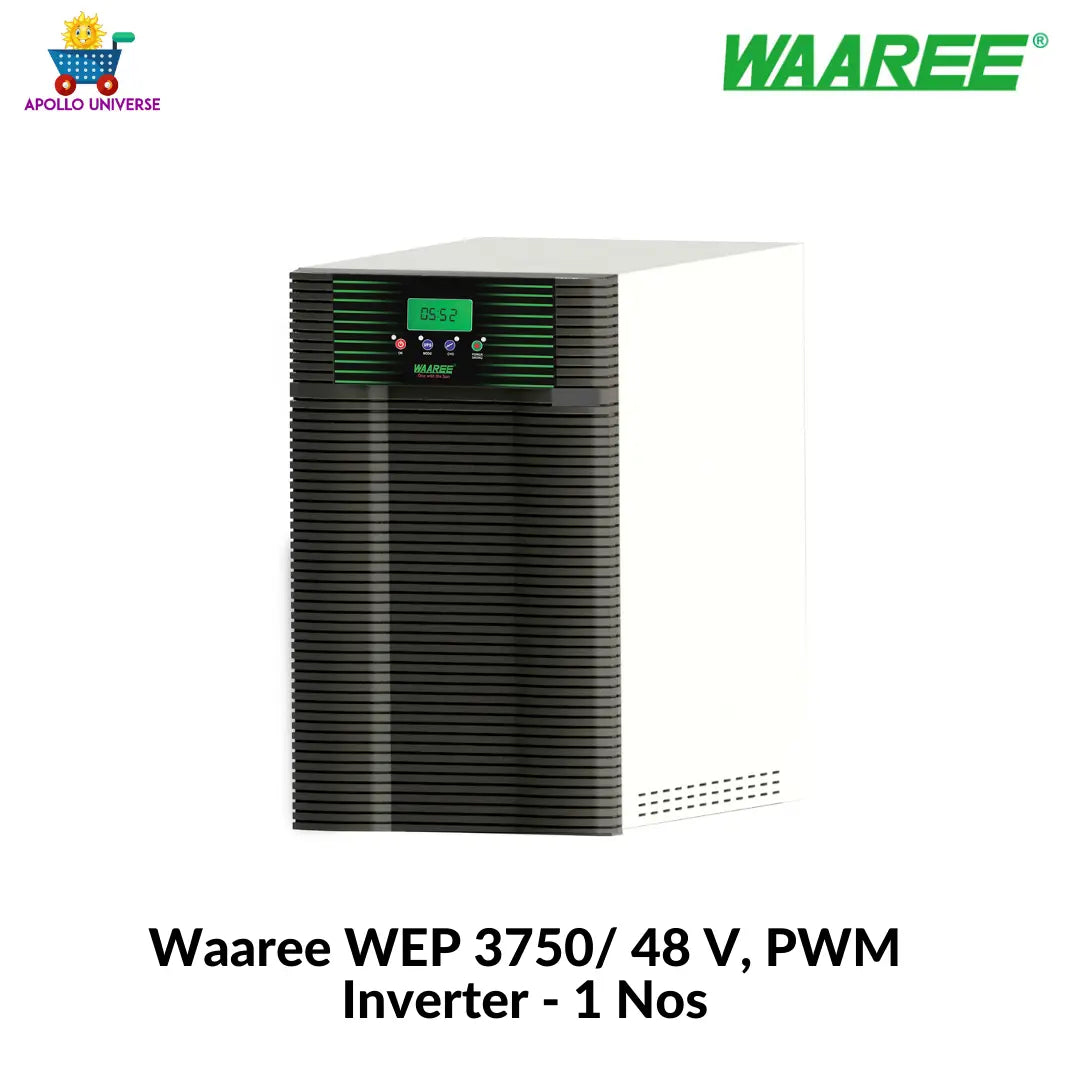

- Waaree WEM 3500 VA or WEP 3750 VA inverters (options)
- The system may generate 240-300 units/month
- Suitable for 2BHK houses, medium-sized shops and offices, restaurants etc
Technical details-
| Solar Panels Make |
Waaree Energies |
| Solar Panel Capacity | 535/540 Watts |
| Solar Panels Technology | Bi-Facial, Half Cut with Mono-Crystalline |
| No of Solar Panels | 4 Nos |
| Total Wattage | 2140 Watts / 2160 Watts |
| Solar Panel Warranty | 30 Years |
| Maximum Power | 540 Watts |
| Maximum Voltage (Volts) | 41.90 Volts |
| Maximum Current (Amps) | 13.02 Amps |
| Open Circuit Voltage (Voc) | 49.76 Volts |
| Short Circuit Current (Isc) | 13.90 Amps |
| Efficiency | 20.98% |
| IP rating (Junction Box) | IP-68 (Waterproof & dustproof) |
| Cable Length | 0.5 Meter & Size- 4 Sq.mm |
| Solar Inverter Make | Waaree Energies |
| Solar Inverter Model | WEM 3500 or WEP 3750 (Option to choose from) |
| Inverter Technology-1 | WEM 3500 - MPPT |
| Inverter Technology-2 | WEP 3750 - PWM |
| Inverter Capacity-1 | WEM 3500 - 3500 VA (2800 Watts @0.8 PF) |
| Inverter Capacity-2 | WEP 3750 - 3750 VA (3000 Watts @0.8 PF) |
| No of Inverters | 1 Nos |
| Inverter Warranty (both) | 2 Years |
| Solar Battery Make | Waaree Energies |
| Solar Battery Capacity | 12 Volts, 150 Ah |
| Solar Battery Technology | Tall Tubular Lead Acid |
| Solar Battery Type | Solar C-10 |
| Solar Battery Warranty | 5 Years |
| No of Batteries | 4 Nos |
| Manufacturer contact details | waaree@waaree.com |
Download datasheets-
- Click here to download the solar panel datasheet
- Click here to download the inverter datasheet
.
