Description

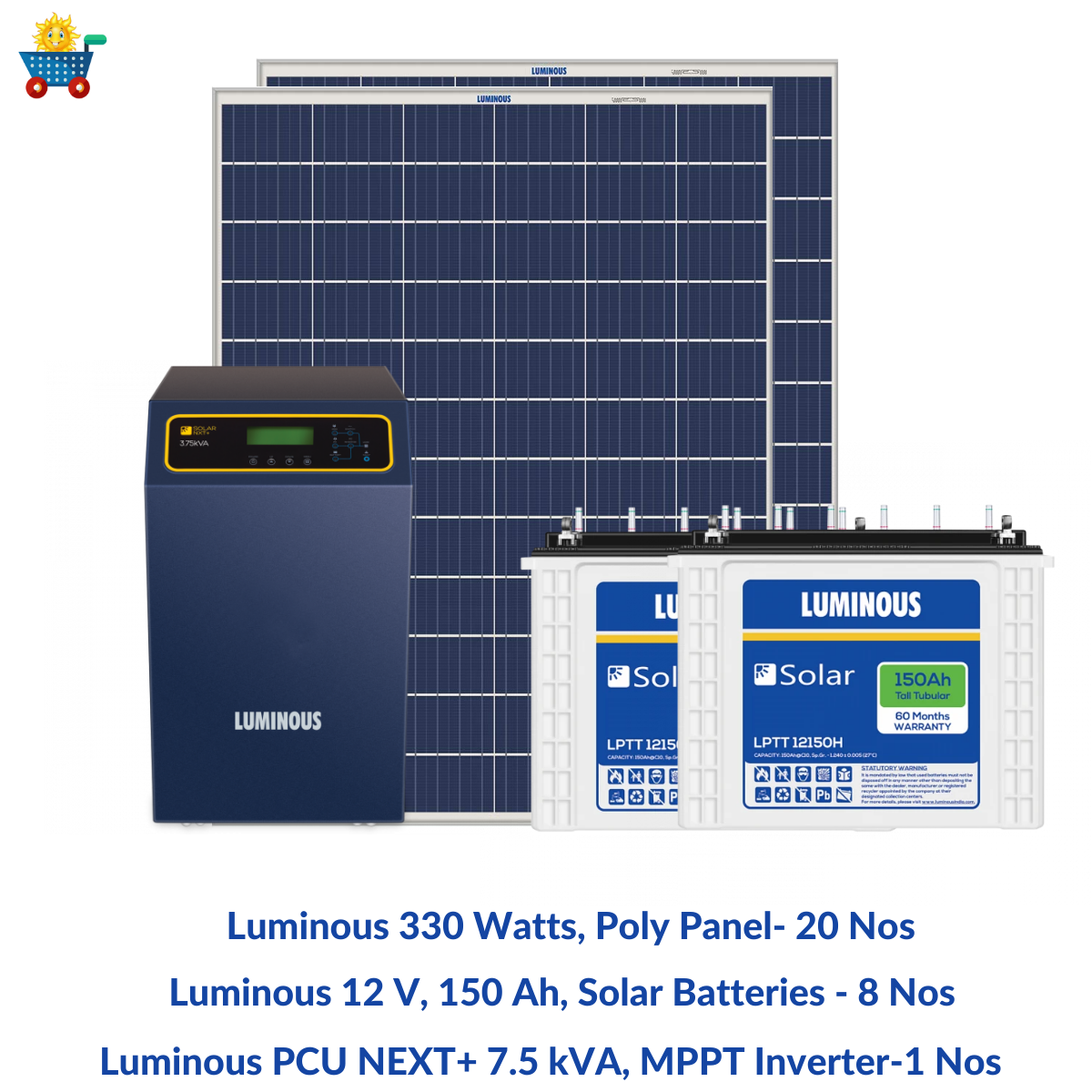

Luminous solar, 10 kilowatts, Polycrystalline, MPPT based off-grid solar system able to generate around 38-44 units/day. Luminous solar 10-kilowatt, off-grid solar panels for home, office and medium-sized shops. The luminous solar 10-kilowatt, off-grid combo pack comes with a super-efficient MPPT inverter & thus maximizes the conversion.
Key Points:-
- Luminous 10-kilowatts, 1-Phase, the off-grid solar system offers best in class performance at a competitive price.
- Daily generation of around 38-44 units/day and thus monthly saving of around 1140-1320 units
- Luminous 10-kilowatts, off-grid solar for home is the best solution for 4BHK homes with an air conditioner, refrigerator, washing machines & light load.
- The off-grid combo pack comes with Luminous 150 Ah, Solar C-10 batteries (10 Nos)
- Luminous 10-kilowatts, off-grid combo pack is capable to run heavy loads such as air conditioner-3 Nos, refrigerator & good choice for the off-grid solar rooftop.
Technical Specifications:-
| Brand Name | Luminous |
| Model No | PCU12.5kVA-120V1N-B150H8N-P330W-30N |
| Solar Panel | Luminous 330 Watts, Poly-Crystalline Solar Panel |
| Technology | Poly-Crystalline |
| Panel Wattage | 330 Watts |
| Total Panels | 30 Panels (330 watts x 30 = 9,900 watts) |
| Panel Voltage | 24 Volts |
| Max Voltage | 38 Volts |
| Open Circuit Voltage | 45.53 V |
| Maximum Current | 8.68 Amps |
| Short Circuit Current | 9.62 Amps |
| Panel Warranty | 25 Years |
| Battery Make | Luminous Solar |

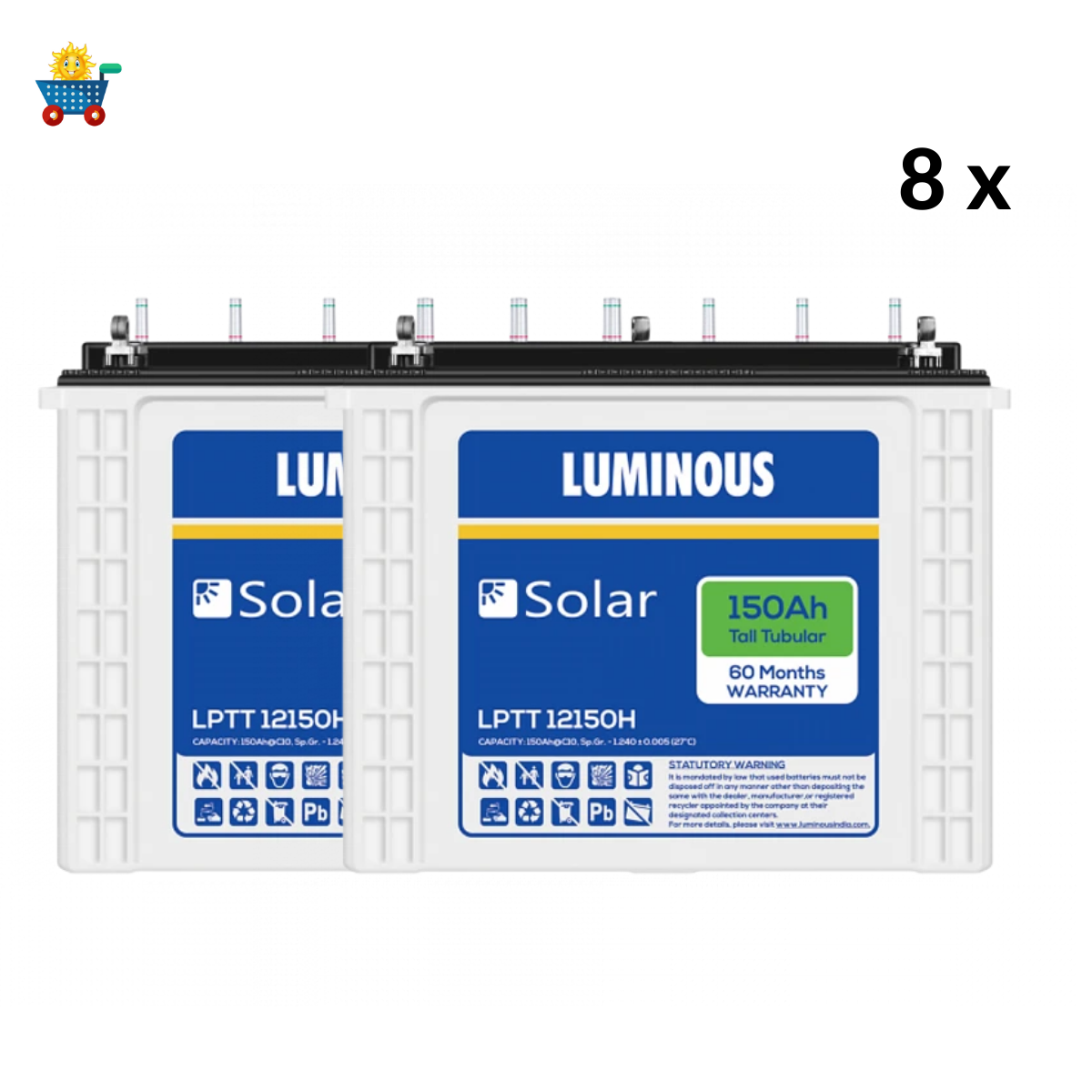

| Battery | Luminous 150 Ah (LPTT 12150H) |
| Type/Technology | Lead Acid, Solar C-10 Battery |
| No of batteries | 8 Batteries |
| Capacity | 150 Ah, 12 Volts |
| Battery Warranty | 5 Years |
| Inverter Make | Luminous |
| Inverter Model | PCU 12.5 kVA |
| Inverter Technology | MPPT |
| Rated AC Power | 230 Volts & 26 Amps |
| PV Voltage Range | 80-165 Volts |
| Maximum Supported Power | 10000 Watts (10 KW) |
| Inverter Warranty | 2 Years |
| Supported Load (suggested) |
Air Cooler-3, Refrigerator-2, Water Pump-5 HP, Washing Machine-2, LED TV-4, Computer-4, LED Lights-30, Fan-10 etc |
| Installation | By consumer |
| Luminous support | care@luminousindia.com |
| Customer Care | 1800 103 3039 |
